Mechanical Room Equipment
Small motors, pumps, valve actuators, and HVAC components in tight mechanical spaces.
Aluminum Gantry Crane · 1100 Series · 1,100 lb / 500 kg
1,100 lb Lift.
No Equipment Needed.
Capacity
1,100 lb
Setup
1–2 people · 2 wrenches
Weight
235 lb assembled
Tested
125% load test
The 1100 Series is the lightest portable aluminum gantry in the eme line — 1,100 lb / 500 kg capacity, 1–2 person setup with two wrenches, no facility equipment required. Shares the trolley family with the 2200 and 4400 Series, so crews already trained on those products can deploy the 1100 without learning a different system.
eme 1100
Engineered, Welded, and Tested for North American Jobsites
Engineered to
- ASME B30.17 Cranes and Monorails
- CSA B167 Overhead Travelling Cranes
- Aluminum Design Manual (ADM) US aluminum structural design
- CSA S157 Strength Design in Aluminum
Welded under
CSA W47.2
Canadian Welding Bureau aluminum welding certification
Workplace compliance
OSHA 1910.179
Supports employer compliance with applicable OSHA 1910.179 workplace requirements when installed, inspected, and used according to the operating manual.
Specifications & 3D Build
The 1100 Series Standard Model
One standard model on the canonical sheet: the 1100R-8. 1,100 lb / 500 kg rated capacity on an 8 ft standard beam, with the lightest assembled weight in the eme line — easy to load into a service truck or move between sites by hand. Spin the model on the right while you read.
Weights, lift ranges, and dimensions verified against the current eme Aluminum Gantry Crane Spec Summary. Lift range = min/max height to lifting eye. Max height = max top-of-trolley height. Assembled weight excludes the beam trolley (shared with the 2200 and 4400 Series). All cranes tested to 125% of rated capacity prior to shipment.

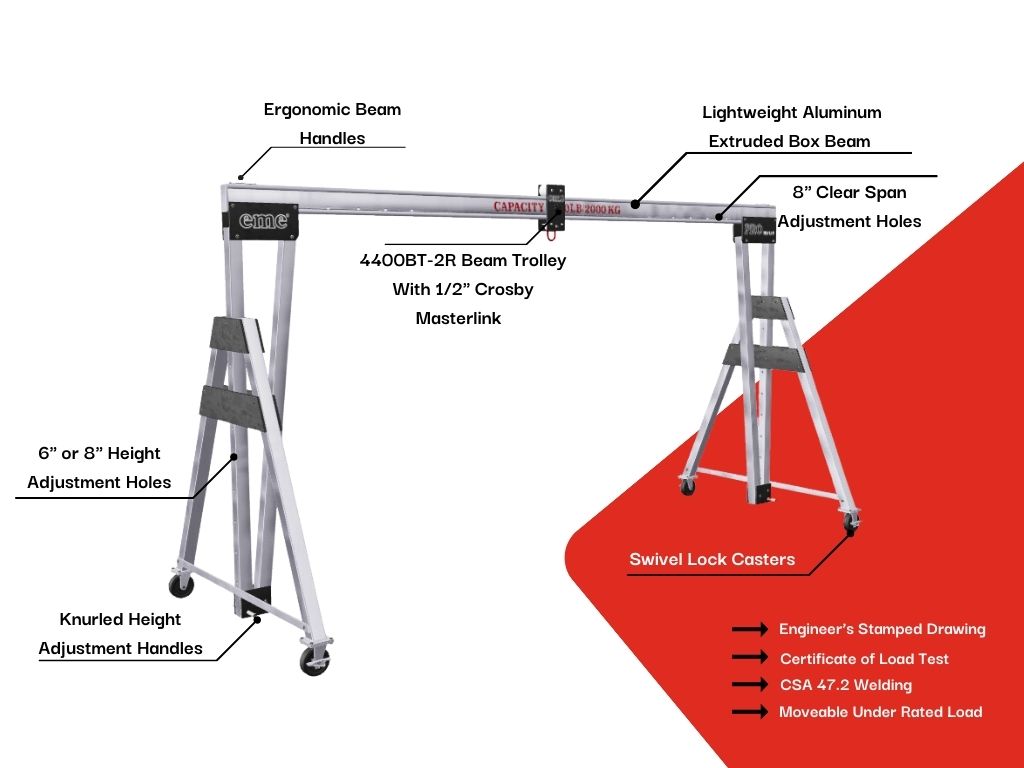

3D model shown is a 4400 Series — the 1100, 2200, and 4400 share the same aluminum extrusion architecture and external profile. Toggle between raised and lowered, view the anatomy, or play the video.
In Use
Where the 1100 earns its keep.
The 1100 Series is the lightest portable aluminum gantry in the line — small enough to throw in the back of a service truck, capable enough for the lifts a one- or two-person crew tackles on a typical day.
Service Truck & Shop
Field-service crews and maintenance shops where the gantry travels with the technician.
Lab & Cleanroom
Light equipment moves where forklifts or facility cranes can't fit or aren't allowed.
Light Industrial Maintenance
Small machinery positioning, conveyor work, and routine plant-floor lifts under 1,100 lb.
Rigging & Equipment Moving
Low-headroom lifts in residential, commercial, and small-industrial settings.
Setup
1–2 People. Two Wrenches. Done.
The 1100 Series is built for the smallest crew in the lineup. Two wrenches are the only tools required, no facility equipment is needed, and the gantry assembles from the ground up in minutes. Same setup logic as the rest of the eme line, scaled down for the smallest capacity tier.
1–2 Person Setup
A two-person crew can assemble the 1100R-8 from the ground up — no forklift, no facility equipment, no crane truck.
Two-Wrench Assembly
Standard hand tools only. Grade L9 chromate-plated fasteners; no welding, no specialized equipment.
Rolls While Fully Loaded
Reposition the 1100R with the load on, on suitable level surfaces and in accordance with the operating manual — no need to unload, re-rig, and re-lift between positions.
Shared Trolley Family
The 1100 uses the same trolley family as the 2200 and 4400 Series — train crews once, stock one shelf of spares, and move parts across the small-to-mid capacity tier.
Standards, Welding Certification & Testing
Engineered, Welded, and Load-Tested for North America
Every eme 1100 Series gantry is engineered to ASME B30.17 (cranes and monorails), CSA B167 (overhead travelling cranes), the Aluminum Design Manual (ADM), and CSA S157 (Canadian aluminum structural design). All welded aluminum structure is produced under CSA W47.2 certification — the Canadian Welding Bureau's third-party credential for fusion welding of aluminum. Each 1100 Series design is qualified by a 150% proof-load test documented on the engineer-stamped drawing. Each production unit is then load-tested to 125% of rated capacity before shipment and supplied with a Certificate of Test.
Compare
Need more capacity?
If your lift is above the 1,100 lb range, compare the higher-capacity gantry series in the eme line. The 2200 and 4400 share the same trolley family as the 1100 — fleet-wide parts compatibility across all three.
1100 Series
1,100 lb
You are here. One model — 1100R-8, the lightest in the line.
Current series2200 Series
2,200 lb
1-tonne capacity. Four models — widest lift-range coverage in the line.
Larger →4400 Series
4,400 lb
2-tonne capacity. Six models, shares the trolley family with the 1100 and 2200.
Larger →6600 Series
6,600 lb
3-tonne capacity. Different trolley family — shared with the 11000 Series.
Larger →11000 Series
11,000 lb
5-tonne capacity. Forklift-assisted setup for heavier industrial work.
Larger →22000 Series
22,000 lb
10-tonne flagship. Standalone architecture with its own trolley family.
Largest →Configure Your 1100 Series Gantry
Tell us your load, lift height, beam span, and jobsite. We’ll confirm the right configuration and respond within one business day with pricing and availability.
