Light.
Loaded.
Tested.
The 4400 Series gives crews 4,400 lb lifting capacity in a portable aluminum gantry built for fast setup, loaded mobility, and jobsite flexibility. Six standard models cover lift heights from 5′6″ to 16′5″, with beam lengths from 6′ to 30′. Most 4400 Series gantries can be assembled from the ground up by 1–3 people using standard tools, then rolled while loaded to position the lift exactly where it needs to be.
- ASME B30.17 Cranes and Monorails
- CSA B167 Overhead Travelling Cranes
- Aluminum Design Manual (ADM) US aluminum structural design
- CSA S157 Strength Design in Aluminum
Choose the 4400 Model That Fits the Lift
Start with the lift height and beam span required for the jobsite. Every standard model in the 4400 Series carries the same 4,400 lb rated capacity. Beam lengths available from 6′ to 30′ — the table shows the six standard configurations. Need a different height, beam length, or site-specific option? Custom configurations are available for project-specific requirements. Spin the model on the right while you read.
| Model | Beam Length | Lift Height (lifting shackle) | Clear Span | Min/Max to Top of Trolley | Caster Spread | Weight |
|---|---|---|---|---|---|---|
| 4400M-10 | 10 ft | 66–90 in | 7 ft | 82–106 in | 48 in | 275 lb |
| 4400R-10 | 10 ft | 82–122 in | 7 ft | 98–138 in | 65 in | 335 lb |
| 4400T-15 | 15 ft | 98–138 in | 12 ft | 114–154 in | 66 in | 365 lb |
| 4400XT-15 | 15 ft | 120–176 in | 12 ft | 135–191 in | 85 in | 400 lb |
| 4400HELI-15 | 15 ft | 135–191 in | 12 ft | 150–207 in | 85 in | 480 lb |
| 4400MAX-15 | 15 ft | 133–197 in | 12 ft | 149–213 in | 106 in | 635 lb |
- Engineer-stamped drawing — design qualified at 150% of rated
- Certificate of Load Test — 125% of rated, per unit
- Operating manual + assembly instructions
- CSA W47.2 welding certification
- Pneumatic Casters — protect roofing or fragile surfaces
- Height Adjustment Kit — custom lift-heights
- Steel Transport Frame — move between sites
- Split-Beam — tight-access lifts
- Eagle Beam — aluminum lifting beam
3D Model Shown is a 4400 Series. Toggle between raised and lowered positions, or play the video to watch the height-adjustment cycle.

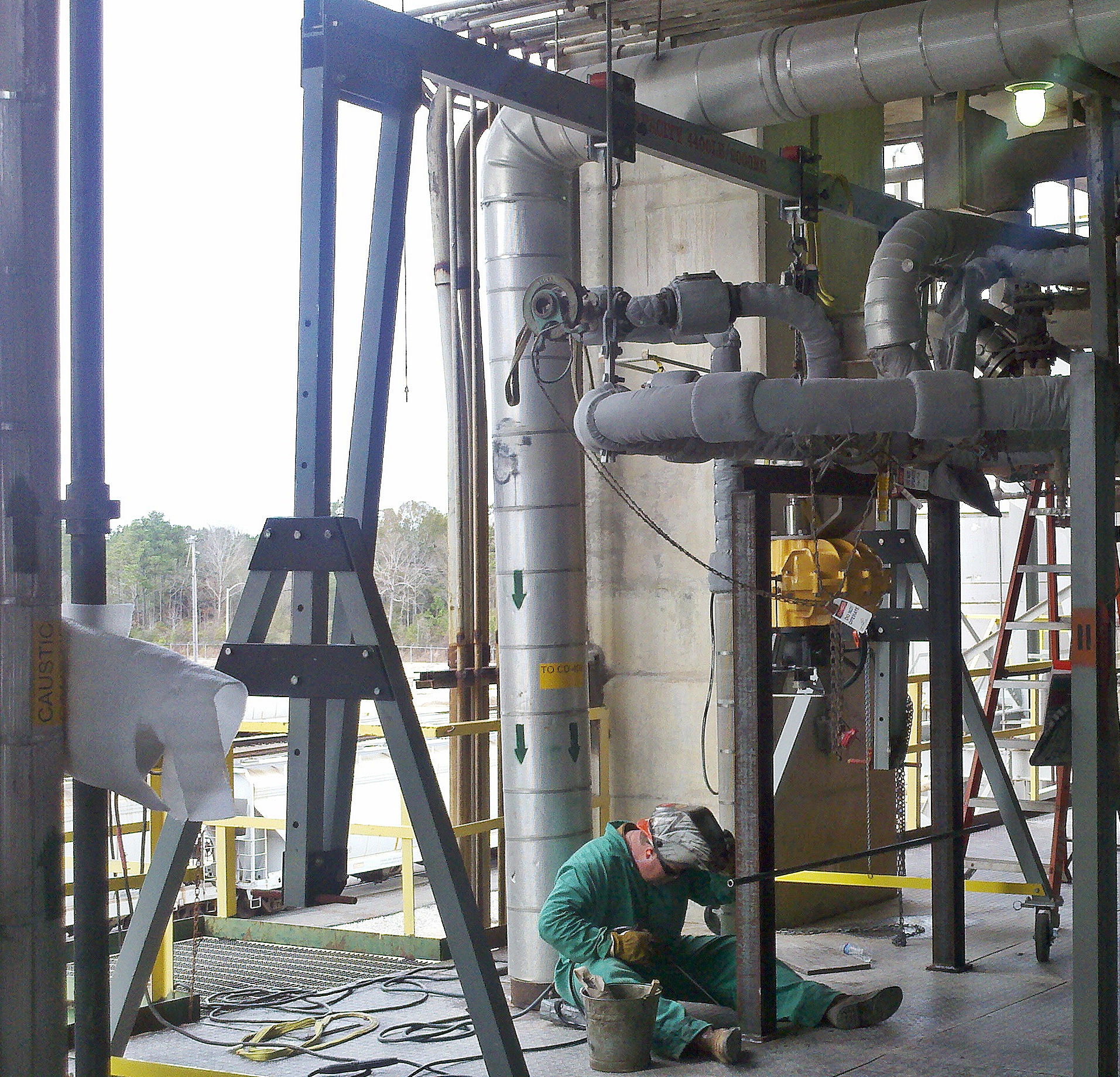

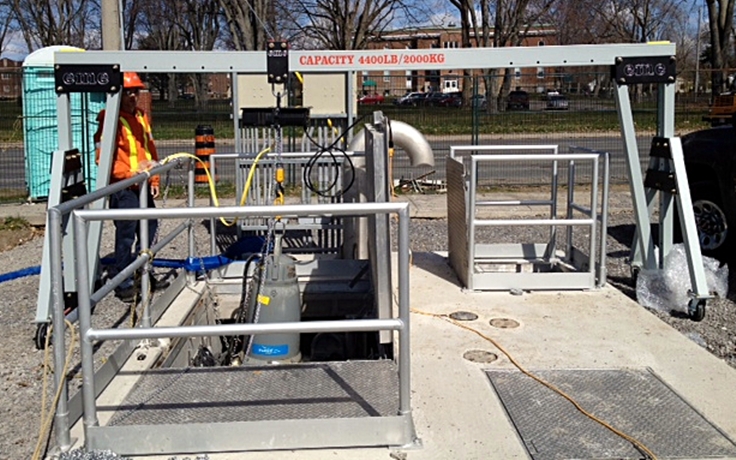

Where the 4400 earns its keep.
The 4,400 lb capacity covers the lifts most jobs actually need. Light enough to move through finished facilities and tight access areas; rated enough to handle pumps, motors, valves, and switchgear once it gets there. Click any photo to enlarge.
Built for 1–3 Person Ground-Up Assembly
Most 4400 Series gantries can be assembled from the ground up by 1–3 people using standard tools. For taller lift heights, longer beams, or faster setup, a forklift or standard facility equipment can make assembly easier and reduce handling effort.
1–3 Person Setup
Most 4400 Series configurations can be assembled from the ground up with a small crew and standard tools.
Facility-Equipment Friendly
Use a forklift or comparable facility equipment to speed setup on taller models, longer beams, or high-frequency fleet use.
Rolls While Fully Loaded
Reposition the 4400 Series with the load on, on suitable level surfaces and in accordance with the operating manual — no need to unload, re-rig, and re-lift between positions.
Shared Trolley Family
Every 4400 Series model uses the same beam trolley shared across the 1100, 2200, and 4400 lines — eleven cranes on one trolley platform. Train once, stock one shelf of spares, swap parts between configurations.
Engineered, Welded, and Load-Tested for North America
Every eme 4400 Series gantry is engineered to ASME B30.17 (cranes and monorails), CSA B167 (overhead travelling cranes), the Aluminum Design Manual (ADM), and CSA S157 (Canadian aluminum structural design). All welded aluminum structure is produced under CSA W47.2 certification — the Canadian Welding Bureau's third-party credential for fusion welding of aluminum. Each 4400 Series design is qualified by a 150% proof-load test documented on the engineer-stamped drawing. Each production unit is then load-tested to 125% of rated capacity before shipment and supplied with a Certificate of Test.
Other capacities in the line.
Lightest in the line. 235 lb assembled — same trolley family.
Smaller →Widest lift range — 66 in to 252 in. Same trolley family.
Smaller →You are here. Six models, 5′6″ to 16′5″ lift heights.
Current series3-tonne capacity. Shares the trolley family with the 11000 Series.
Larger →Heavy-duty 5-tonne lifting. Shares the trolley family with the 6600 Series.
Larger →Top of the line. 10-tonne capacity in a portable aluminum gantry — flagship of the eme range.
